Fortpro Automatic Slack Adjuster 1 1/4" Diameter, 10 Teeth, 5 1/2" Arm, Gunite Style Replaces AS1136 | F225065

Product image 1
Product image 2
Product image 3

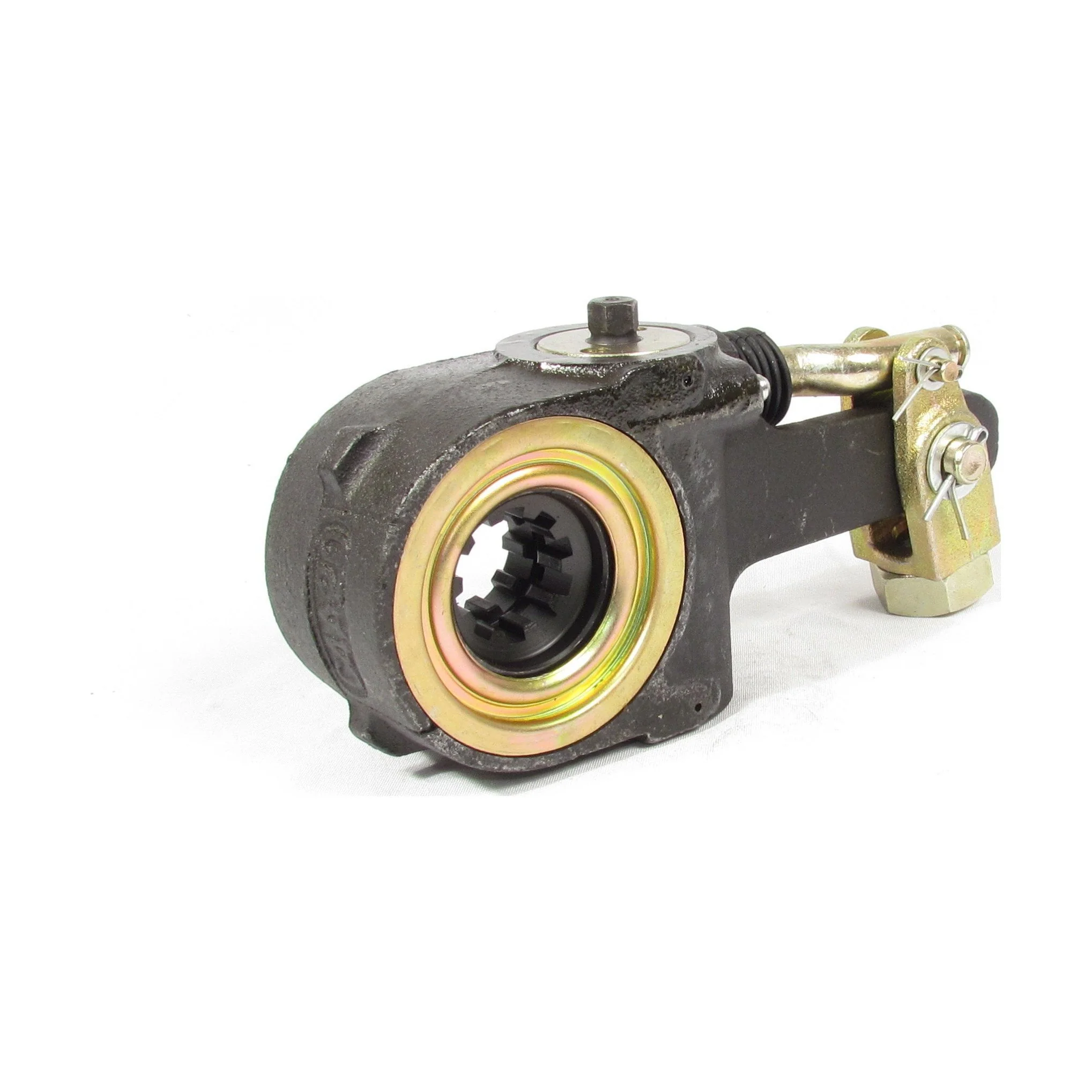

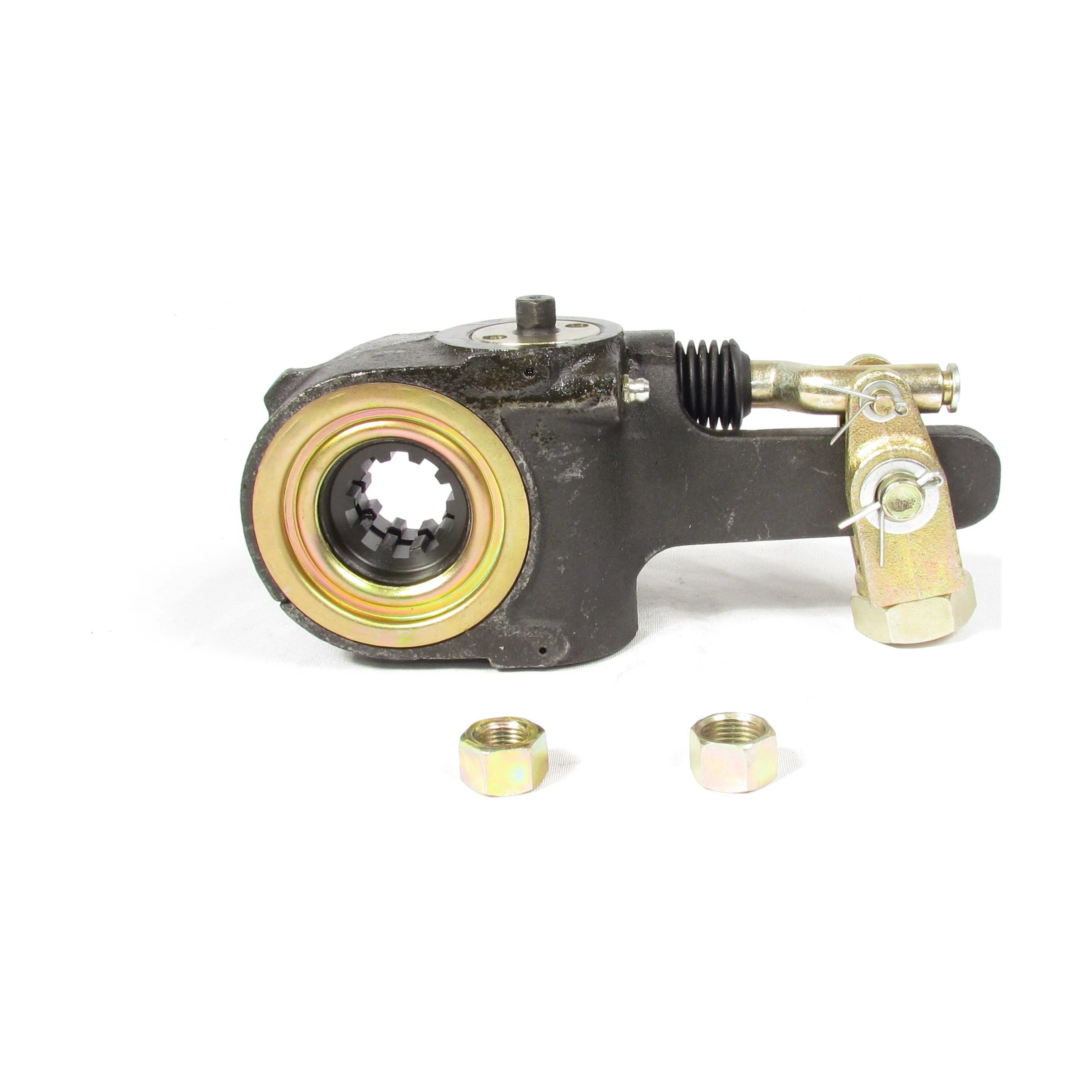

Fortpro Automatic Slack Adjuster 1 1/4" Diameter, 10 Teeth, 5 1/2" Arm, Gunite Style Replaces AS1136 | F225065


Specifications:

  • Brand: Fortpro
  • Vehicle Type: Semi-Trucks / Heavy Trucks
  • Product Department: Brakes
  • Product category : Slack Adjuster
  • OEM Reference: AS1136
  • Part Type: Automatic Slack Adjuster
  • Style: Gunite
  • Slack Spline Diameter: 1-1/4 in.
  • Slack Spline Count: 10
  • Arm Length 1: 5-1/2 in.
  • Arm Length 2: N/A
  • Arm Length 3: N/A
  • Clevis Type: Collar Lock Straight
  • Clevis Thread Diameter: 1/2-20 UNF-2B
  • Maximum Torque Rating: Less than 15 foot pounds
  • Arm Offset: No Offset
  • Arm Bushing(s)Inside Diameter (ID): N/A
  • Inclination Angle (Body Angle): 0 °
  • Maximum Operating Temperature: 158 °F (70 °C)
  • Minimum Operating Temperature: (-40 °F) (-40 °C)
  • Material: Alloy Steel
  • Type of Operation: Tension Adjuster - Torque
  • Chamber Sizes: T-16
  • Application: Steer AxleBrake Size: 15"

CrossReference:

  • Automann: 1381010
  • Dayton Parts: 5770
  • Euclid: E-15020
  • Gunite: AS1136
  • Haldex: 40020235
  • Meritor: R802031
$14.70

Original: $49.00

-70%
Fortpro Automatic Slack Adjuster 1 1/4" Diameter, 10 Teeth, 5 1/2" Arm, Gunite Style Replaces AS1136 | F225065—

$49.00

$14.70

Product Information

Shipping & Returns

Description


Specifications:

  • Brand: Fortpro
  • Vehicle Type: Semi-Trucks / Heavy Trucks
  • Product Department: Brakes
  • Product category : Slack Adjuster
  • OEM Reference: AS1136
  • Part Type: Automatic Slack Adjuster
  • Style: Gunite
  • Slack Spline Diameter: 1-1/4 in.
  • Slack Spline Count: 10
  • Arm Length 1: 5-1/2 in.
  • Arm Length 2: N/A
  • Arm Length 3: N/A
  • Clevis Type: Collar Lock Straight
  • Clevis Thread Diameter: 1/2-20 UNF-2B
  • Maximum Torque Rating: Less than 15 foot pounds
  • Arm Offset: No Offset
  • Arm Bushing(s)Inside Diameter (ID): N/A
  • Inclination Angle (Body Angle): 0 °
  • Maximum Operating Temperature: 158 °F (70 °C)
  • Minimum Operating Temperature: (-40 °F) (-40 °C)
  • Material: Alloy Steel
  • Type of Operation: Tension Adjuster - Torque
  • Chamber Sizes: T-16
  • Application: Steer AxleBrake Size: 15"

CrossReference:

  • Automann: 1381010
  • Dayton Parts: 5770
  • Euclid: E-15020
  • Gunite: AS1136
  • Haldex: 40020235
  • Meritor: R802031
