Metric Serrated Drive Wheel Stud M22 x 1.5 THD 0.910" BD x 4 15/32" - 10 Pack

Fortpro M22 x 1.5 Metric Serrated Drive Wheel Stud F286691 is designed to provide a secure and reliable hold on demanding automotive applications. These wheel studs are constructed of the highest quality materials and meet exacting standards for strength and durability.

Specifications:

• Brand: Fortpro
• Part Type: Wheel Stud / Metric Serrated Drive Wheel Stud
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: E10219, E-10219
• DIN / ISO Grade: 10.9
• Type: Headed
• Metric Thread Size: M22 X 1.5-6g

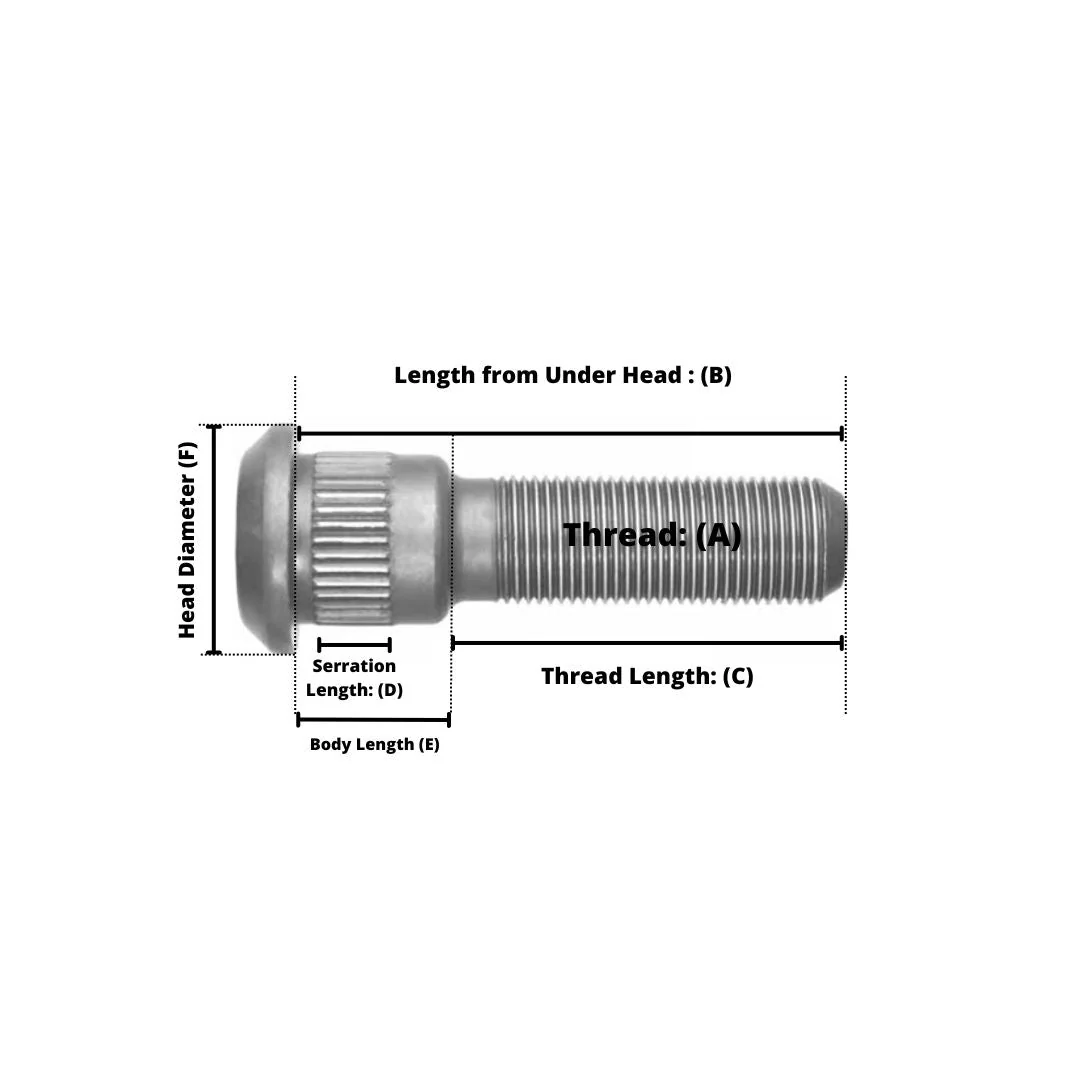

• Body Length (E): 1.55"

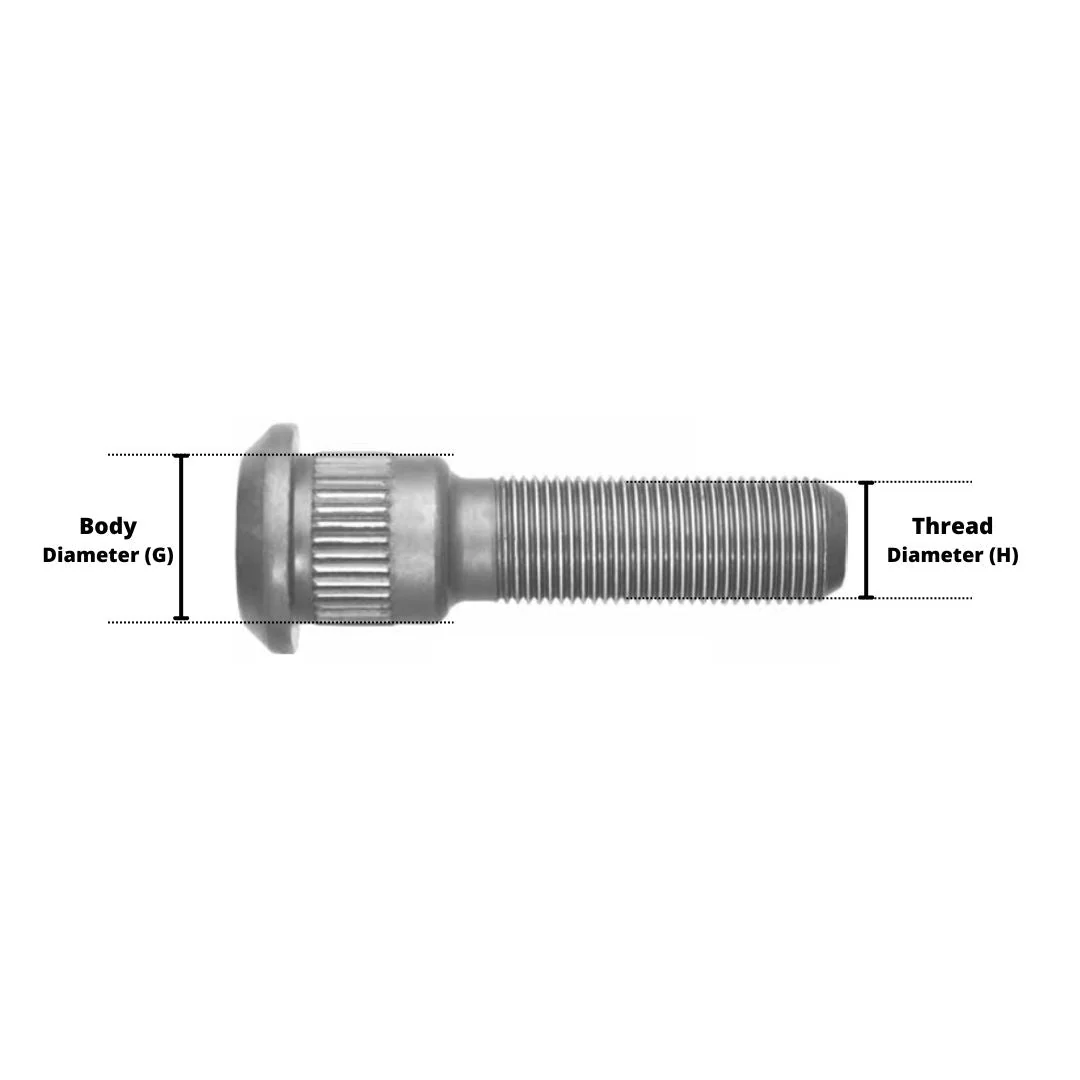

• Body Diameter (G): 0.910"
• Length from Under Head (B): 4 15/32"
• Head Diameter (F): 1.50"
• Head Style: Round
• Head Thickness: 0.38"
• Thread (A): M22 x 1.5
• Thread Diameter (H): 22.0 mm
• Wheel End Thread Direction: RH (Right Hand)
• Threads per Inch: 1.5 per mm
• Thread Length (C): 2.57"
• Serration: Serrated
• Serration Length (D): 0.50"
• Serration Diameter: 0.937"
• VMRS: 018-003-009
• Item Package Quantity: 10
• Notes: Grade 10.9 is the metric equivalent of Grade 8

CrossReference:

• Automann: 2016141, 2016141P2
